• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

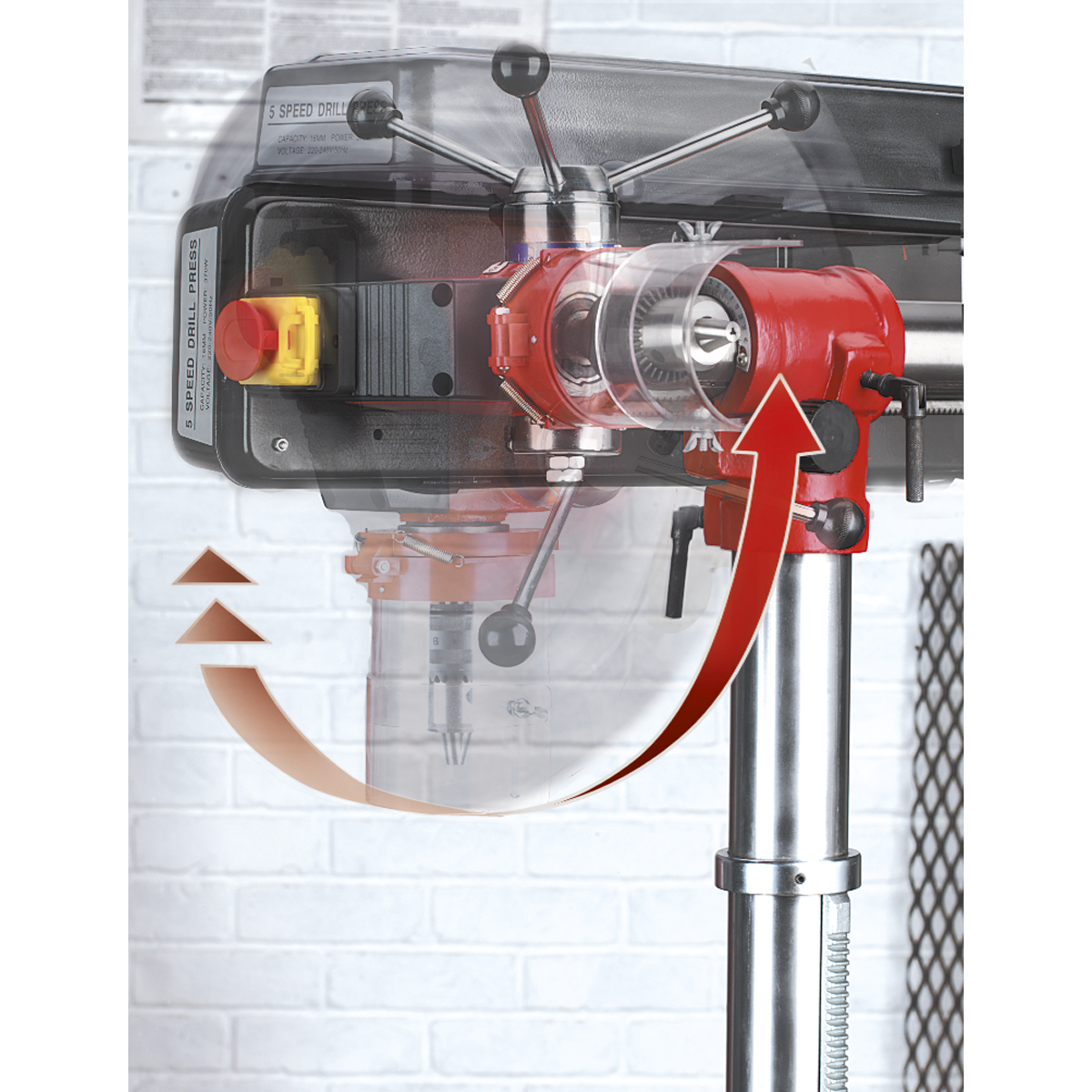

• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.

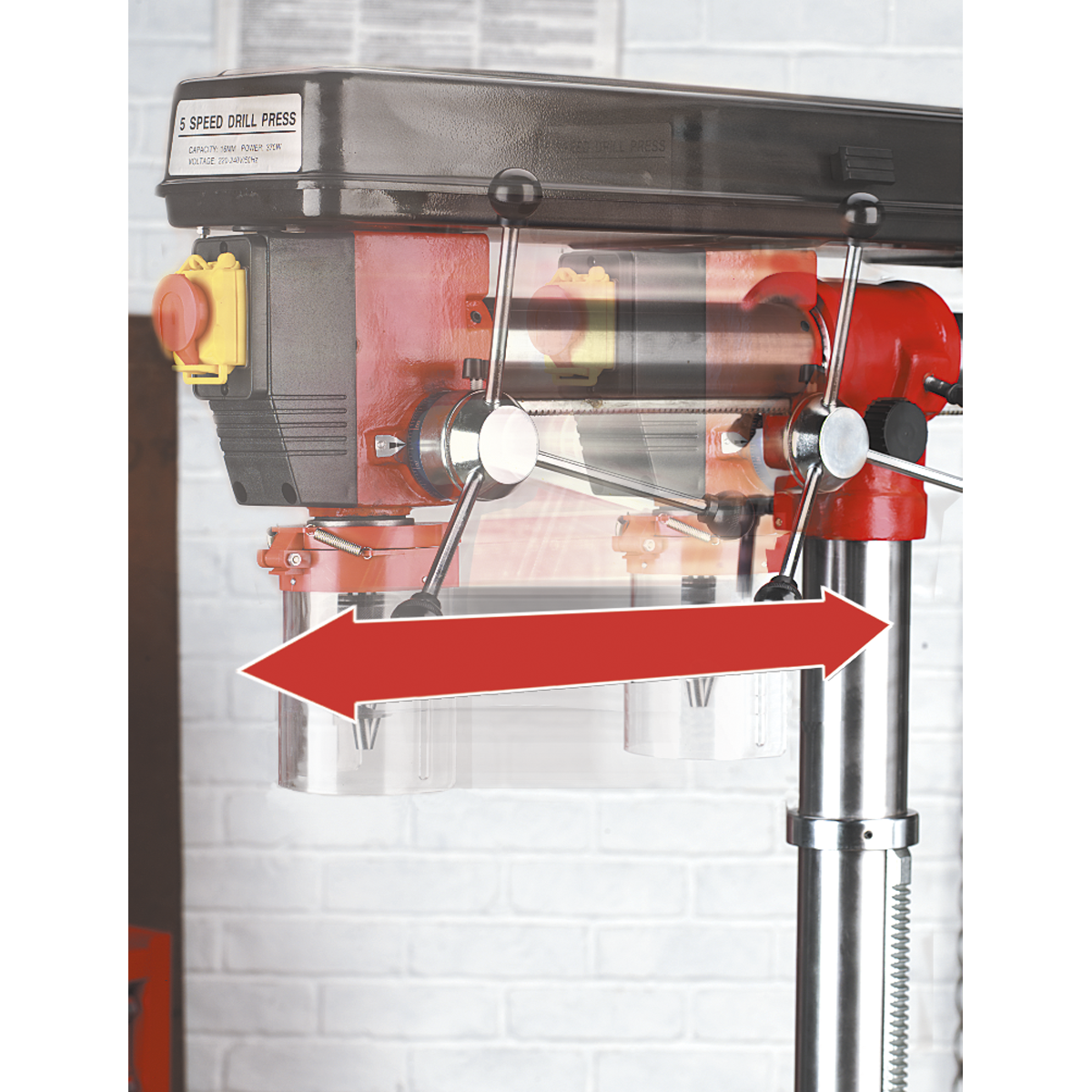

• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as floor standing type - GDM1630FR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck No. 2MT.
• Height: 820mm.
• Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 60mm.
• Spindle Travel: 80mm.
• Weight: 43kg.
